 Counter Steer Setup Sheet

View previous topic View next topic Go down
AuthorMessage
jovenshadow
Chase Driver
avatar

Posts : 555
Join date : 2010-08-22
Location : Deira

PostSubject: Counter Steer Setup Sheet   Tue Sep 27, 2011 9:06 pm

Hello All, i saw this on other forum, we need thread like this also to compare our setting and reference for others who want to try CS.

Note: pls remove if duplicate post.

Make: Tamiya
Model: VDF Gold Edition

Track surface: Asphalt
Tire: Drift Tires from R2hobbies
Motor & ESC: Yeah Racing 5.5t BL Combo 60A ESC
Battery: Yeah Racing 3600mah & Zippy 5200mah

Front
Camber: -4 degrees
Toe out: 1 degree
Kick up:
Caster Setup: 0 degrees (its tamiya stock c-hub, so im not sure)
Ride height: 6mm
Springs: VDF Stock (Rear)
Bumper weight: 0
Trailing Steering Block: Stock
Sway-Bar: None
Shock Oil: Tamiya damper oil (yellow included in the kit)
Other: Front One-Way , Front pulley 39T/13T

Rear
Camber: 0 degrees
Toe in: 0
Kick up: None
Ride height: 7mm
Springs: OTA-R31 stock (Rear)
Sway-Bar: None
Shock Oil: Tamiya damper oil (yellow included in the kit)
Other: Direct Spool, Rear Pulley 30T/22T

Drive Train
Gearing: Front 39T - 13T center / Rear 30T - 22T= OD rate 120%

Front: One Way
Center: Direct
Rear: Spool
Spur:128T, .04 Tamiya module
Pinion: 32T, .04 Tamiya module
Other: all parts stock, shaved stopper on the knuckle to get extra steering angle

Picture:






Last edited by jovenshadow on Sun Feb 19, 2012 2:48 pm; edited 1 time in total
Back to top Go down
http://www.jovenshadow.com
Bandit
Lead Driver


Posts : 1688
Join date : 2009-08-26
Location : Al-Ain/Philippines

PostSubject: Re: Counter Steer Setup Sheet   Wed Sep 28, 2011 9:57 pm

Make: Tamiya
Model:TA05 VDF Gold
Track surface: Any surface
Tire: Threaded
Motor & ESC : Team Orion Vortex R10 Pro / 13.5R Speed Passion V3

Front
Camber: 0 degree
Toe:-1
Kick up: 2mm
Caster hubs: 10 deg
Ride height: 5mm
Springs: Super Drift Springs PRO
Bumper weight: 30 grams
Trailing Steering Block: 0
Sway-Bar: none
Shock Oil:
Other:

Rear
Camber: -0
Toe:0
Kick up: 0
Ride height: 5mm
Springs:VDF stock
Sway-Bar: none
Shock Oil:
Other:

Drive Train
Gearing & CS Ratio: 120%
Front:39
Center: 13/22
Rear:30
Spur:120 tamiya 0.4
Pinion:37 tamiya 0.4
Other: Spec R Universals 46mm




Last edited by Bandit on Tue Feb 21, 2012 6:35 pm; edited 2 times in total
Back to top Go down
jovenshadow
Chase Driver
avatar

Posts : 555
Join date : 2010-08-22
Location : Deira

PostSubject: Re: Counter Steer Setup Sheet   Thu Sep 29, 2011 6:01 pm

Make: Steet Jam
Model: OTA-R31

Track surface: Asphalt
Tire: Drift Tires from R2hobbies
Motor & ESC: Yeah Racing 5.5t BL Combo 60A ESC
Battery: Yeah Racing 3600mah & Zippy 5200mah

Front
Camber: -4 degrees
Toe out: 1 degree
Kick up:
Caster Setup: 4 degrees
Ride height: 6mm
Springs: OTA-R31 Stock (Rear)
Bumper weight: 0
Trailing Steering Block: Stock
Sway-Bar: None
Shock Oil: Tamiya damper oil (yellow included in the kit)
Other: Front One-Way , Front pulley 40T/14T

Rear
Camber: 0 degrees
Toe in: 0
Kick up: None
Ride height: 7mm
Springs: Yeah Racing yellow
Sway-Bar: None
Shock Oil: Tamiya damper oil (yellow included in the kit)
Other: Direct Spool, Rear Pulley 35T/22T

Drive Train
Gearing:
Front 40T - 14T
Outer center 19T - 15T
Rear 35T - 22T
OD rate 127% or 2.27

Front: One Way
Center: Direct
Rear: Spool
Spur:89T, 48P
Pinion: 20T, 48P
Other: CF Conversion kit and All red alum parts are from R2hobbies.com

Picture:





Back to top Go down
http://www.jovenshadow.com
jovenshadow
Chase Driver
avatar

Posts : 555
Join date : 2010-08-22
Location : Deira

PostSubject: Re: Counter Steer Setup Sheet   Sun Feb 19, 2012 2:51 pm

UP UP UP!!!

new photo added....

Back to top Go down
http://www.jovenshadow.com
Jay
Administrator
avatar

Posts : 2600
Join date : 2009-06-03
Location : Dubai Uae

PostSubject: Re: Counter Steer Setup Sheet   Sun Feb 19, 2012 8:28 pm

Ok............. due to public demand and for everyones peace of mind would it be possible for all the members specially the EH event participants to post in their countersteer setup, motor, dumper, etc.. basically as per 1st post. Please insure that what you post is what you run with for the comming stages.

I'll be cleaning my kit, taking some photos and try to post them up by tonight! Alright!

_________________
Back to top Go down
http://www.dubdrift.com
J.Drift
Moderator
avatar

Posts : 3123
Join date : 2009-06-08
Location : Abu Dhabi, UAE

PostSubject: Re: Counter Steer Setup Sheet   Sun Feb 19, 2012 8:40 pm

Reserve for My OTA Counter steer Details

Track surface: Asphalt
Tire: Drift Tires from R2hobbies
Motor & ESC: R2 ESC & Tamiya RZ Brushed Motor
Battery: Zippy 5600 Mah 50c

Front
Camber: i dont know scratch
Toe out: 0
Kick up: 2mm
Caster Setup: 8deg
Ride height: 5mm
Springs: OTA-R31 Stock Spring
Bumper weight: 30grms
Trailing Steering Block:
Sway-Bar: None
Shock Oil: None
Other: Front One-Way , Front pulley 39T/15T

Rear
Camber: 0 degrees
Toe in: 1 deg
Kick up: 2.5mm
Ride height: 6mm
Springs: OTA-R31 Stock Spring
Sway-Bar: None
Shock Oil: None
Other: Direct Spool, Rear Pulley 32T/22T

Drive Train
Gearing:
Front 39T - 15T
Outer center 19T - 14T
Rear 22T - 36T
OD rate As per Race & Drift Tech Check : Your rear wheels spin 116% faster than your front wheels. Counter steer ratio: 2.16

Check Here

Front: One Way
Center: Direct
Rear: Spool
Spur:90T, 48P
Pinion: 16T, 48P
Other: CF Conversion kit from R2hobbies.com

Picture :


_________________
Feel The VIP Power

The JZX100 Cresta


Last edited by J.Drift on Mon Feb 20, 2012 12:26 pm; edited 1 time in total
Back to top Go down
http://twitter.com/
caloyski
Moderator
avatar

Posts : 748
Join date : 2010-12-16
Location : Discovery Gardens, Dubai

PostSubject: Re: Counter Steer Setup Sheet   Mon Feb 20, 2012 2:27 am

Make: Yokomo
Model: MR4TC SD

Track surface: Asphalt
Tire: Diamond Tires - R2hobbies
Motor & ESC: Novak Ballistic 8.5T / Mamba Max Pro
Battery: 3800 / 4000 / 4400 Mah

Front
Camber: -4 degrees
Toe out: 0 degree
Kick up: 3 mm
Caster Setup: 7 degrees
Ride height: 6mm
Springs: Stock (enroute jxr)
Bumper weight: 30g
Trailing Steering Block: Stock
Sway-Bar: None
Shock Oil: none (lube only)
Other: Front One-Way , Front pulley 40T/17T

Rear
Camber: 0 degrees
Toe in: 1
Kick up: None
Ride height: 7mm
Springs: Super soft (yellow)
Sway-Bar: None
Shock Oil: none (lube only)
Other: FCD 2.0 (20T/17T)

Drive Train
Gearing: Front 40T - 17T / Rear 20T - 17T= OD rate 100%

Front: One Way
Center: Shaft
Rear: Spool
Spur:75T, 48P
Pinion: 23T, 48P
Other: shaved C-Hub & knuckle, DIY Steering link extension to get extra steering angle

Picture:

_________________


Last edited by caloyski on Mon Feb 20, 2012 12:00 pm; edited 1 time in total
Back to top Go down
http://caloyski76.multiply.com
sandrock_22
Driver
avatar

Posts : 215
Join date : 2009-09-26
Location : Bur Dubai

PostSubject: Re: Counter Steer Setup Sheet   Mon Feb 20, 2012 10:43 am

Make: RC Art
Model: CE-RX WhiteWolf

Track surface: Asphalt
Tire: Street Drift Tires f5 from thaitown
Motor & ESC: Enroute Neon 7.5t & Team Wave RB 50 ESC
Battery: Eagle Racing 5300mah & 5600mah

Front
Camber: -5 degrees
Toe out: 0 degree
Kick up:
Caster Setup: 0 degrees
Ride height: 5mm
Springs: CE-RX Stock (Rear)
Bumper weight: 0
Trailing Steering Block: Stock
Sway-Bar: None
Shock Oil: 10w
Other: Front One-Way , Front pulley 39T/14T

Rear
Camber: 0 degrees
Toe in: 0
Kick up: None
Ride height: 7mm
Springs: CE-RX stock (Rear)
Sway-Bar: None
Shock Oil: 70w
Other: Direct Spool, Rear Pulley 32T/21T

Drive Train
Gearing: Front 39T - 14T center / Rear 32T - 21T= OD rate 82.8%

Front: One Way
Center: Direct
Rear: Spool
Spur: 90T, 48p HPI module
Pinion: 21T, 48p kawada module
Other:

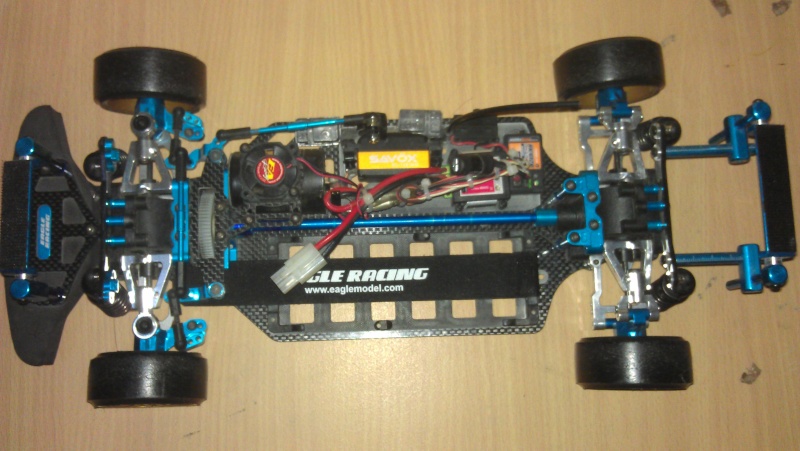

Picture:

[img][/img]



Back to top Go down
ginnackle
Chase Driver
avatar

Posts : 521
Join date : 2009-06-10
Location : sharjah U.A.E

PostSubject: Re: Counter Steer Setup Sheet   Tue Feb 21, 2012 3:57 am

Make: R2
Model: OTA-R31

Track surface: Asphalt
Tire: Drift Tires from R2hobbies
Motor & ESC: Balistic 8.5t Havoc3s ESC
Battery: Yeah Racing 7.4 3600mah & Orion 7.4 4000mah

Front
Camber: -4 degrees
Toe out: 1 degree
Kick up:
Caster Setup: 7 degrees
Ride height: 6mm
Springs: OTA-R31 hard (Rear)
Bumper weight: 0
Trailing Steering Block: Stock
Sway-Bar: None
Shock Oil: None
Other: Front One-Way , Front pulley 40T/15T

Rear
Camber: 0 degrees
Toe in: 0
Kick up: None
Ride height: 7mm
Springs: Tamiya red soft
Sway-Bar: None
Shock Oil: Tamiya damper oil
Other: Direct Spool, Rear Pulley 32T/22T

Drive Train
Gearing:
Front 40T - 15T
Outer center 22T - 14T
Rear 36T - 22T
OD rate 188% or 2.88

Front: One Way
Center: Direct
Rear: Spool
Spur:86T, 48P
Pinion: 32, 48P
Back to top Go down
caloyski
Moderator
avatar

Posts : 748
Join date : 2010-12-16
Location : Discovery Gardens, Dubai

PostSubject: Re: Counter Steer Setup Sheet   Sun Oct 28, 2012 1:58 am

Up!
fill this up guys!

_________________
Back to top Go down
http://caloyski76.multiply.com
elmer456
Test Driver
avatar

Posts : 164
Join date : 2012-08-11
Location : sharjah

PostSubject: Re: Counter Steer Setup Sheet   Sun Oct 28, 2012 1:52 pm

now?
Back to top Go down
lemans207
Mechanic
avatar

Posts : 8
Join date : 2013-01-26
Location : Abu Dhabi

PostSubject: Re: Counter Steer Setup Sheet   Sun Jan 27, 2013 3:32 pm

Chassis : MST XXX-D VIP

Battery : 11.1v 3600 mAh
Bearing: Full ball bearings
Caster : 10, 14 degrees variableness
Camber : 0 to –12 degrees

Gear ration : 1.89 ( 34T/18T )
CS ration : 1.32 ( 40T/16T )
Damper : Oil damper

Front : One-Way
Back to top Go down
caloyski
Moderator
avatar

Posts : 748
Join date : 2010-12-16
Location : Discovery Gardens, Dubai

PostSubject: Re: Counter Steer Setup Sheet   Sun Jan 27, 2013 7:17 pm

Make: Yokomo
Model: DIB

Track surface: Tiles and Asphalt
Tire: Enroute Medium asphalt and Autodrift ProGrip
Motor & ESC: Hobbywing 11.5T / Speed Passion Reventon PRO
Battery: 5600 Mah Turnigy Nanotech

Front
Camber: 0 degrees
Toe out: 1 degree
Kick up: 0 mm
Caster Setup: 12 degrees
Ride height: 5mm
Springs: Yokomo super drift spring (black) & DP stock Silver springs
Bumper weight: 45g
Shock Oil: #450
Other: Front One-Way

Rear
Camber: -2 degrees
Toe in: 2 degrees
Kick up: None
Ride height: 6mm
Springs: Soft (black-yokomo)
Shock Oil: #150
Other: spool diff

Drive Train
Gearing: Front 40T - 15T center / Rear 22T - 15T center = OD rate 80%
Spur:87T, 48P
Pinion: 31T, 48P


_________________
Back to top Go down
http://caloyski76.multiply.com
rommel
Test Driver
avatar

Posts : 171
Join date : 2009-12-17
Location : Hamdan St. Abu Dhabi City UAE

PostSubject: Re: Counter Steer Setup Sheet   Sun Feb 03, 2013 2:03 am

Make: Tamiya TT01-D
Model: TT01 Eagle Racing Front Motor

Date: 02/02/2013
Track surface: Asphalt/Smooth concrete
Motor & ESC: Mopped ESC/Sports Tuned Motor
Servo: SAVOX 1251mg
Battery: NiMH 3600 mah

Front

Camber :-5
Toe: 0
Springs: Enroute Stock
Shock Oil: Enroute Stock
Caster : 5 degrees
Sway Bar: None
kick-up: None
Ride Height: 6mm

Rear

Camber: -2
Toe: -3
Springs: Enroute Stock
Shock Oil: Enroute Stock
Sway Bar: None
Ride Height: 7mm


Drive Train

Front: Stock TT01 front gears
Rear: Active Hobby v2.0 CS kit
Spur: 61T
Pinion: 18T







Back to top Go down
caloyski
Moderator
avatar

Posts : 748
Join date : 2010-12-16
Location : Discovery Gardens, Dubai

PostSubject: Re: Counter Steer Setup Sheet   Sun Feb 03, 2013 3:13 am

2thumbsup @rommel 2thumbsup

_________________
Back to top Go down
http://caloyski76.multiply.com
Sponsored content




PostSubject: Re: Counter Steer Setup Sheet

Back to top Go down

Counter Steer Setup Sheet
View previous topic View next topic Back to top
Page 1 of 1

Permissions in this forum:You cannot reply to topics in this forum
 :: EP General Forums :: EP Drifting :: Technical Discussion-
Jump to:
