 Project: Custom 3-Belt Drift Chassis

View previous topic View next topic Go down
Go to page : 1, 2  Next
AuthorMessage
LaNcE
Lead Driver
avatar

Posts : 2517
Join date : 2009-06-08
Location : Al Khan, Sharjah, UAE

PostSubject: Project: Custom 3-Belt Drift Chassis   Thu Apr 07, 2011 4:44 pm

I had several ideas of how to convert my Sakura Zero to a front-mid mount motor and a 3-belt drive.
But this one looks promising:



Just a rough 3D I made..

This will make the adjustment of the front's IDR easier. In the OTA-R31, the rear's IDR varies more than the front's.
As the OD ratio becomes bigger, the Rear IDR becomes less putting more load to the motor. Although you can adjust the FDR by changing pinions and spurs, it's gonna cost a lot of money to collect them.

With this new design we can let the rear's IDR stay constant, keeping the FDR, and easily make the front drive slower by changing the pulleys.

Will need new belts for the middle and rear drives and hope they are available with minor tensioner adjustments. Looking at Fujin's or Xpress' rear belts for the middle and TA-05v2 or OTA-R31 middle belts for the rear. Need to take more measurements before I can finalize the motor mount.

Will need new upper decks as well. But that's not hard to do.

Just need to finalize the design and get a CNC Machine shop to make the parts. some testings and it's off to the track.

Tried emailing a manufacturer if they're interested but all I got as a reply was "Well noted with thanks". Sad.



Please do share you thoughts.



NB: will try to make a more clear representation.. very happy







Last edited by LaNcE on Thu Apr 21, 2011 10:59 pm; edited 2 times in total
Back to top Go down
http://www.dubdrift.com
strawb
@dubdrift.com
@dubdrift.com
avatar

Posts : 1590
Join date : 2009-11-15
Location : Dubai

PostSubject: Re: Project: Custom 3-Belt Drift Chassis   Thu Apr 07, 2011 7:23 pm

good ideas there lance ....

sorry for the CNC work .... i have been SUPER BUSY!!!!!!
Back to top Go down
http://forcea.multiply.com/
RECKRACING
Administrator
avatar

Posts : 197
Join date : 2009-06-07
Location : Dubai UAE

PostSubject: Re: Project: Custom 3-Belt Drift Chassis   Fri Apr 08, 2011 2:20 am

This would be another DUBDRIFT first! Well done Lance! what size of belt will you use?
what type of software are you using?
Back to top Go down
RECKRACING
Administrator
avatar

Posts : 197
Join date : 2009-06-07
Location : Dubai UAE

PostSubject: Re: Project: Custom 3-Belt Drift Chassis   Fri Apr 08, 2011 2:55 am

The reason I ask for the software is because the file should be easily converted to G code for the CNC to read. Another option is to have it milled manually, Ive seen a few machine shops in sharjah which I think can do the job, also I have a lot of 6mm solid ali @ 5cm width you can use. lets make this work!
Back to top Go down
LaNcE
Lead Driver
avatar

Posts : 2517
Join date : 2009-06-08
Location : Al Khan, Sharjah, UAE

PostSubject: Re: Project: Custom 3-Belt Drift Chassis   Fri Apr 08, 2011 2:35 pm

@strawb, not a problem.. thanks!

@reck, it's an autocad file. will easily be converted for CNC machining. belts will have to be experimental but I have some extra belts that I can test. And yeah, let's do this! very happy

Back to top Go down
http://www.dubdrift.com
LaNcE
Lead Driver
avatar

Posts : 2517
Join date : 2009-06-08
Location : Al Khan, Sharjah, UAE

PostSubject: Re: Project: Custom 3-Belt Drift Chassis   Sat Apr 09, 2011 3:38 pm

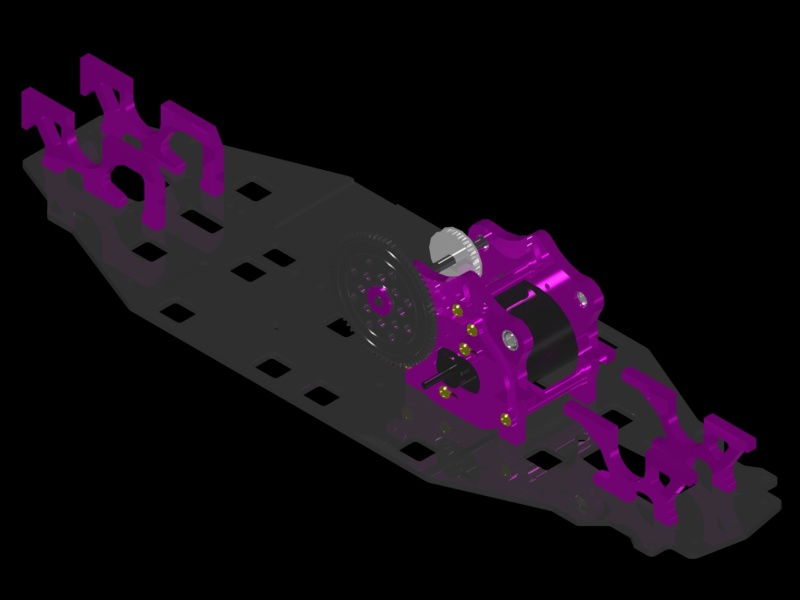

New 3D drawing upped.. very happy

Thanks to Ian for the upload..



Back to top Go down
http://www.dubdrift.com
bong
Chase Driver
avatar

Posts : 1024
Join date : 2009-07-02
Location : Al Ghusais

PostSubject: Re: Project: Custom 3-Belt Drift Chassis   Wed Apr 20, 2011 8:17 pm

here is my contribution, (the uploading only):

Back to top Go down
http://www.kodakcinelabs.ae
jebjeb
@dubdrift.com
@dubdrift.com
avatar

Posts : 1953
Join date : 2009-11-19
Location : Dubai

PostSubject: Re: Project: Custom 3-Belt Drift Chassis   Wed Apr 20, 2011 8:51 pm

which suspension arms and other bits are you going to use for that drifter?

if this pushes through, are you going to sell it as a package (with all other parts to make a proper kit)?
Back to top Go down
LaNcE
Lead Driver
avatar

Posts : 2517
Join date : 2009-06-08
Location : Al Khan, Sharjah, UAE

PostSubject: Re: Project: Custom 3-Belt Drift Chassis   Wed Apr 20, 2011 11:14 pm

@bong, thanks for the upload! pesky office firewalls blocked all hosting sites..

got free time earlier in the office so was able to trace some parts from the PDF Manual.

@papi, The drifter will have stock Sakura Zero parts. The belts, main motor mount and center shafts are the only ones modified.

Will try to make more representations in 3D to make it look better while I search for a machine shop to do the milling. Already got some prospects. very happy
Drawing it in 3D also helps in taking measurements for the upper deck and getting how their shapes' gonna be. Dodging the belts of course. thumbs_up

Back to top Go down
http://www.dubdrift.com
paul
@dubdrift.com
@dubdrift.com
avatar

Posts : 1462
Join date : 2009-10-26
Location : Dubai

PostSubject: Re: Project: Custom 3-Belt Drift Chassis   Thu Apr 21, 2011 2:45 am

Looking good, get this working on Sakura S too and youll have an awesome after Market kit! Plus a pretty good option for an entry level drifter.

And then Lastly you'll need to match the Sakura PINK anodising! laughing Your render looks too HB purple laughing
Back to top Go down
http://dirtrc.blogspot.com/
LaNcE
Lead Driver
avatar

Posts : 2517
Join date : 2009-06-08
Location : Al Khan, Sharjah, UAE

PostSubject: Re: Project: Custom 3-Belt Drift Chassis   Thu Apr 21, 2011 11:41 am

Thanks Paul! Will try to make it as close as possible.. giggle

No plans of infiltrating the market.. Just letting go of some suppressed creativity.. laughing

If it makes me money doing so, then it's a welcomed surprise.. thumbs_up
Back to top Go down
http://www.dubdrift.com
jebjeb
@dubdrift.com
@dubdrift.com
avatar

Posts : 1953
Join date : 2009-11-19
Location : Dubai

PostSubject: Re: Project: Custom 3-Belt Drift Chassis   Thu Apr 21, 2011 7:07 pm


Back to top Go down
DORIYAA!
Co-Driver


Posts : 56
Join date : 2011-01-03
Location : Sydney, Australia

PostSubject: Re: Project: Custom 3-Belt Drift Chassis   Thu Apr 21, 2011 7:58 pm


this project looks really awesome! keep the updates coming! smile
Back to top Go down
http://Sydneyrcdrifters.com/forum
LaNcE
Lead Driver
avatar

Posts : 2517
Join date : 2009-06-08
Location : Al Khan, Sharjah, UAE

PostSubject: Re: Project: Custom 3-Belt Drift Chassis   Thu Apr 21, 2011 10:56 pm

Thanks for the upload Ian! thumbs_up
Back to top Go down
http://www.dubdrift.com
LaNcE
Lead Driver
avatar

Posts : 2517
Join date : 2009-06-08
Location : Al Khan, Sharjah, UAE

PostSubject: Re: Project: Custom 3-Belt Drift Chassis   Tue Sep 06, 2011 4:21 pm

Update.. very happy

Some changes in the original design but nevertheless, the same concept.

Got the pieces waterjet cut so the edges are rough.. Counterbored holes were done manually.. neutral











Will clean up the parts before installing..

Next is to mount this little thingy on the actual chassis. Which is going to require a bit of accuracy.. very happy


Last edited by LaNcE on Tue Sep 06, 2011 5:00 pm; edited 1 time in total
Back to top Go down
http://www.dubdrift.com
strawb
@dubdrift.com
@dubdrift.com
avatar

Posts : 1590
Join date : 2009-11-15
Location : Dubai

PostSubject: Re: Project: Custom 3-Belt Drift Chassis   Tue Sep 06, 2011 4:43 pm

looking sood lance ..... it looks like your gonna square up your sakura ....

keep the update coming
Back to top Go down
http://forcea.multiply.com/
J.Drift
Moderator
avatar

Posts : 3123
Join date : 2009-06-08
Location : Abu Dhabi, UAE

PostSubject: Re: Project: Custom 3-Belt Drift Chassis   Tue Sep 06, 2011 4:43 pm

sweet! cant wait to see it sliding 2thumbsup
Back to top Go down
http://twitter.com/
jebjeb
@dubdrift.com
@dubdrift.com
avatar

Posts : 1953
Join date : 2009-11-19
Location : Dubai

PostSubject: Re: Project: Custom 3-Belt Drift Chassis   Tue Sep 06, 2011 9:11 pm

reserve one for me lance smile
Back to top Go down
mc drift
Chase Driver
avatar

Posts : 629
Join date : 2009-06-19
Location : Abu Dhabi UAE

PostSubject: Re: Project: Custom 3-Belt Drift Chassis   Wed Sep 07, 2011 1:04 am

i wish someone will make our vdf into front motor mount... thumbs_up we are plenty around here. well done lance!!!
Back to top Go down
LaNcE
Lead Driver
avatar

Posts : 2517
Join date : 2009-06-08
Location : Al Khan, Sharjah, UAE

PostSubject: Re: Project: Custom 3-Belt Drift Chassis   Wed Sep 07, 2011 1:39 am

Thanks for the comments guys!

Front motor conversion is next in line.. very happy

Just wanted to try and make this work.. thumbs_up

It's actually fairly easy.. just take those 3 holes for mounting the bumper/body post part and start from there.. very happy

Back to top Go down
http://www.dubdrift.com
LaNcE
Lead Driver
avatar

Posts : 2517
Join date : 2009-06-08
Location : Al Khan, Sharjah, UAE

PostSubject: Re: Project: Custom 3-Belt Drift Chassis   Fri Sep 09, 2011 10:16 pm

Update..


Thanks to Jon for the steering set. thumbs_up

Holes for motor mount and servo were done (hopefully correct).

I'll need to get something to hold the battery though.. R2 Hobbies perhaps?

And upper decks.

Back to top Go down
http://www.dubdrift.com
LaNcE
Lead Driver
avatar

Posts : 2517
Join date : 2009-06-08
Location : Al Khan, Sharjah, UAE

PostSubject: Re: Project: Custom 3-Belt Drift Chassis   Fri Sep 09, 2011 10:30 pm

Low rev test run..

Back to top Go down
http://www.dubdrift.com
mc drift
Chase Driver
avatar

Posts : 629
Join date : 2009-06-19
Location : Abu Dhabi UAE

PostSubject: Re: Project: Custom 3-Belt Drift Chassis   Fri Sep 09, 2011 11:10 pm

like! like! when is the high rev test?...shakedown!
Back to top Go down
J.Drift
Moderator
avatar

Posts : 3123
Join date : 2009-06-08
Location : Abu Dhabi, UAE

PostSubject: Re: Project: Custom 3-Belt Drift Chassis   Sat Sep 10, 2011 12:15 am

im excited to see how it slide very happy
Back to top Go down
http://twitter.com/
chardiboi
Chase Driver
avatar

Posts : 1319
Join date : 2009-06-08
Location : dxb

PostSubject: Re: Project: Custom 3-Belt Drift Chassis   Sat Sep 10, 2011 1:51 am

very nice indeed prof. lance very happy

cant wait to see a front motor mounted ota,
i'd be happy to have my kit as a guinea pig very happy
Back to top Go down
